| បរិមាណ: | |
|---|---|
63cm* 25.5cm*15cm
CAMC

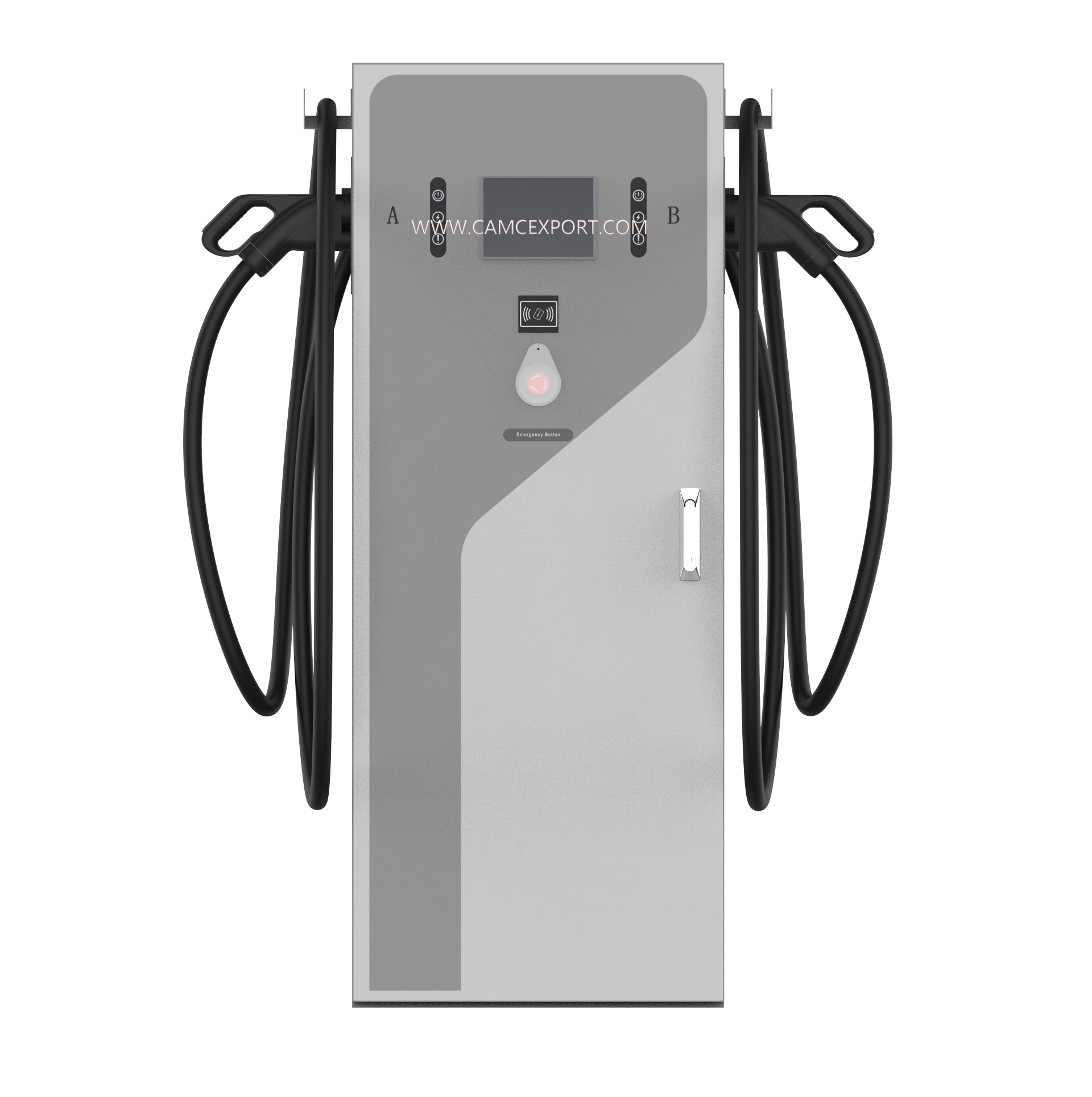

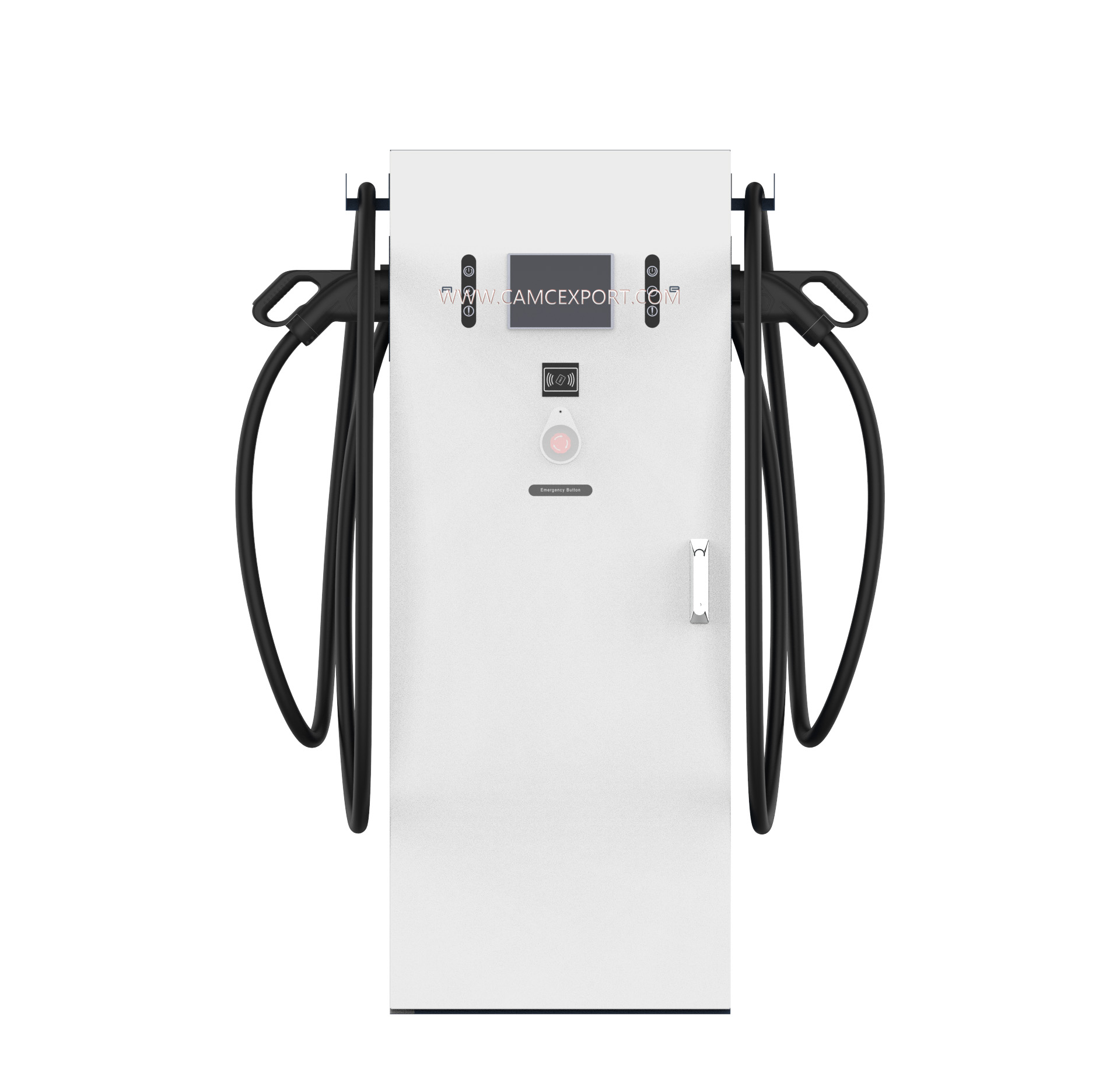

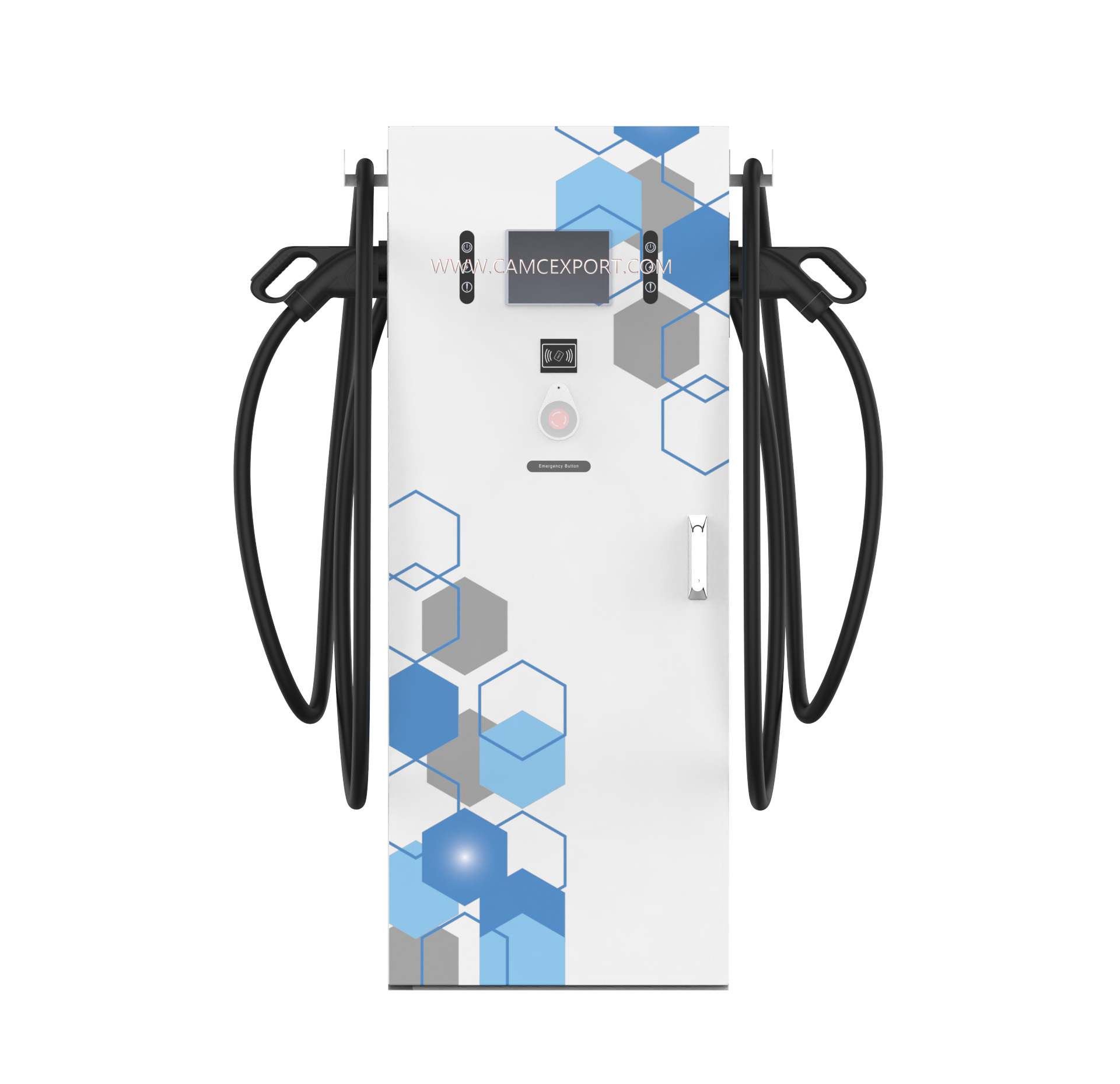

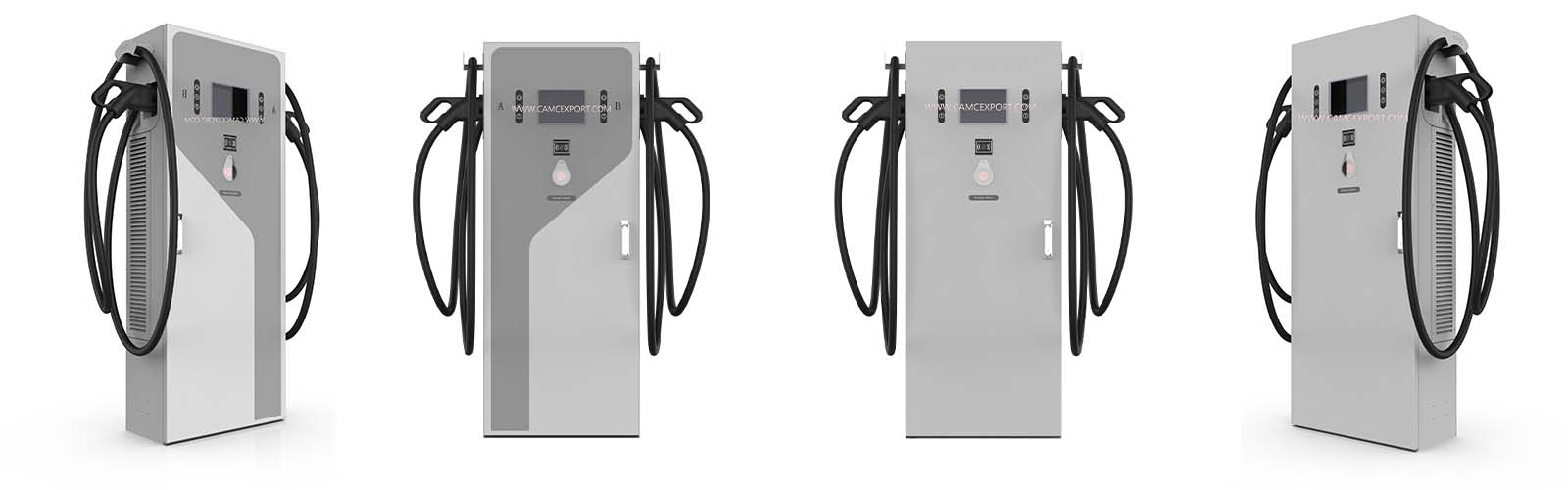

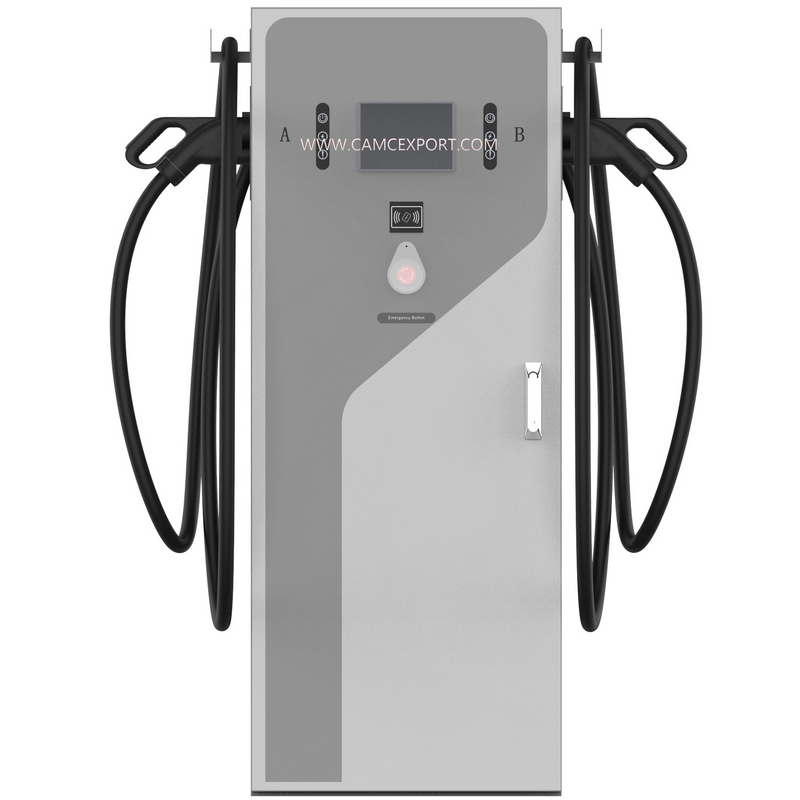

The CAMC CCS1 vertical cabinet charger is an efficient fast charging device designed specifically for mainstream electric commercial vehicles. It adopts a minimalist industrial appearance design and is equipped with a blue breathing status indicator light, which can intuitively monitor the charging status in real time. It combines high aesthetic appearance and practical operation attributes, and is widely suitable for various outdoor charging scenarios such as parking lots and logistics parks. With its core advantages of safety, reliability, efficient fast charging, easy maintenance, and strong adaptability, it has become the preferred solution for upgrading the global electric commercial vehicle charging infrastructure. This device strictly follows the IEC 61851 international charging standard, has global interoperability and market access compatibility, and is compatible with commercial charging standards in multiple countries; Equipped with A-type RCD and 6mA DC leakage detection system, it can quickly cut off abnormal currents within 0.1 seconds. At the same time, it integrates eight layers of safety protection mechanisms such as overvoltage, undervoltage, overcurrent, and lightning protection, comprehensively avoiding charging faults and safety hazards, and creating an industry-leading safe charging system. The device supports 380V AC (± 25% wide input) voltage access and can be converted to 50-1000V DC wide range output, with a maximum power of up to 60kW, perfectly matching the fast charging needs of various mainstream electric commercial vehicles, greatly improving energy replenishment efficiency and vehicle attendance. The whole machine adopts a modular structure design, greatly simplifying the later maintenance and repair process, effectively reducing operation and maintenance costs; The whole machine achieves IP54 high-level protection, supports non completely sealed dust prevention, all-round splash water prevention, and can operate stably in various complex outdoor scenarios for a long time, without fear of environmental interference such as outdoor dust and rain, continuously ensuring the stability and safety of charging equipment, highly in line with the development trend of global new energy commercial vehicle popularization and charging infrastructure upgrading.
Power | 20kW/30kW/40kW/60kW |
Model | DC (Single gun ) DC (Double gun) |
| Connector | GBT/CCS1/CHAdeMO/CCS2 |
Max Power | 60kW |
Emergency Stop Button | Yes |
Communication Protocol | 0CPP1.6J Or other |
Input Voltage | 380V (-25%+25%) AC |
Frequency | 50Hz+ 10% |
Output Voltage | 50V ~ 1000VDC |
IP Protection Grade | IP54 |
Power distribution | Average power distribution |
Power factor | 20.99 |
Peak efficiency | 95.5% |
Overall efficiency | 94% |
auxiliary power supply | 12V |
humidness | ≤95% |
Soft startup time | 3-8S |
Output voltage error | ≤+0.5% |
Output curent error | 230A，≤+1%; <30A， ≤+0.3A. |
Voltage accuracy | ≤0.5% |
Steady flow accuracy | ≤1% |
Voltage ripple | ≤1% |
Current sharing | ≤5% |
Load adjustment rate | ≤1% |
Emc | GB/T 19826-2014: 5.4 |
Starting mode | Swipe card/small program scan code |
Insulation resistance | ≥10MΩ |
Withstand voltage | AC2500V |
Display screen | 7 inch touch screen |
Installation mode | Floor |
Operating temperature | -35℃~+55℃ |
Charging gun length | 5m/7m/8m |
Altitude | ≤2000m (Customization required above 2000 m) |
Outer dimension | 630mm* 255mm*1500mm |
Harmonic distortion | ≤5% |
1. Compliance with international standards and global applicability: Strictly following the IEC 61851 international standard, compatible with mainstream market access requirements worldwide, with strong equipment interoperability, seamless adaptation to electric commercial vehicle charging systems in various countries, and extremely high adaptability to overseas markets.
2. Eight fold safety protection, zero hidden dangers during charging: equipped with a high-precision leakage detection system, with a rapid cut-off time of 0.1 seconds, combined with comprehensive protection mechanisms such as overvoltage, undervoltage, overcurrent, lightning protection, etc., to build a strong defense line for charging safety and adapt to commercial high-frequency charging scenarios.
3. Wide voltage adaptation, efficient fast charging: supports 380V AC wide input, 50-1000V DC wide range output, 60kW high-power fast charging, fully covering the energy replenishment needs of mainstream electric commercial vehicles, and efficiently improving fleet operation efficiency.
4. High protection and weather resistance, long-term outdoor operation: IP54 professional protection level, dust-proof and anti splash, fearless of complex outdoor environmental interference, stable operation, durable and resistant to manufacturing, suitable for long-term outdoor work scenarios such as parks and parking lots.
5. Modular and easy to maintain, with practical appearance: Modular structural design simplifies the later maintenance process and reduces operation and maintenance costs; The minimalist industrial style appearance paired with intelligent breathing indicator lights makes the status clear at a glance, combining aesthetics and practicality.
1. Southeast Asian logistics park operator: "Our park has a large number of electric commercial vehicles, high charging frequency, and strict requirements for equipment safety and stability. The CAMC CCS1 vertical cabinet charger has strong adaptability and meets international charging standards. The 60kW fast charging greatly improves the vehicle's energy replenishment efficiency, and the eight fold safety protection makes commercial charging more reassuring. IP54 protection is perfectly suitable for outdoor outdoor scenes, with indicator lights for intuitive viewing of charging status. The modular design is easy to maintain in the later stage, effectively reducing the operation and maintenance costs of the park. It is a high-quality equipment for upgrading our charging infrastructure. "
2. European new energy infrastructure purchaser: "The admission standards for charging equipment in Europe are strict. This CCS1 vertical charger fully complies with IEC international standards and can be directly adapted for local market use with excellent compatibility. The device has stable charging, complete safety mechanisms, high-speed leakage protection to eliminate safety risks, wide voltage adaptability to different working conditions, strong outdoor weather resistance, low failure rate, and combines the advantages of efficient fast charging, low operation and maintenance costs, and compliance. It is very suitable for large-scale deployment in commercial new energy charging scenarios. "
CAMC International is a leading enterprise in China's heavy-duty vehicle industry. As a national key R&D and production base for heavy-duty vehicles, specialized vehicles, and core components, the company has maintained a leading position in the industry since its establishment in the 1970s. As the only truck manufacturer in China with the ability to independently produce the entire industry chain including engines, transmissions, axles, chassis, and cab, CAMC has achieved complete autonomy and controllability from key components to the entire vehicle.
Relying on the research and development capabilities of national level technology centers, the company's products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in infrastructure, mining, logistics, and other fields. With the advantage of a complete industrial chain and continuous technological innovation, CAMC not only occupies an important position in the domestic market, but also exports its products to more than 80 countries and regions around the world. As a high-end equipment manufacturing enterprise supported by national policies, the company is continuously promoting the upgrading and development of China's commercial vehicle industry towards intelligence and green direction.
Q:Which vehicles is this DC charging column suitable for?
A:Widely used for charging cars, engineering vehicles, logistics vehicles, sanitation vehicles and other vehicles
Q:What networking methods are supported?
A:Support 4G、Ethernet networking
Q:What are the protection functions？
A:Short circuit, over current, over temperature, leakage, over voltage, etc.
Q:What are the charging modes？
A:Automatic charging, by time, by battery, by amount
Q:How to start the charging pile？
A:Swipe IC card, WeChat scan code, VIN, password
Q:How long is the warranty？
A:Warranty 1 year. If you need to increase the warranty: 3% in the second year, 4% in the third year, 5% in the fourth year, and 8% in the fifth year.
Q:Are there other types and series of charging piles?
A:We have a full-scene, full-category charging pile product system, such as H series AC charging piles, X series AC charging piles, L series DC charging piles, T series AC charging piles, etc., to meet your diverse needs.
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q:Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
