| បរិមាណ: | |
|---|---|
19.5(H) × 9.5(W) × 5.5(D) cm
CAMC

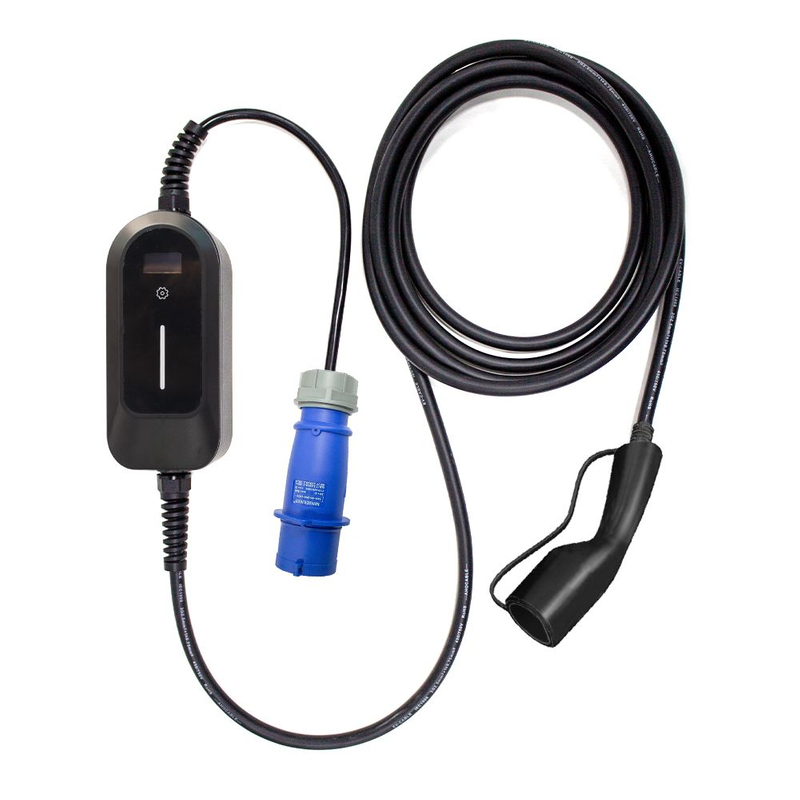

The CAMC AC 7kW charger is a high safety and high adaptability intelligent charging device designed specifically for home and commercial scenarios. With comprehensive safety protection, intelligent visual monitoring, efficient and stable charging performance, and strong environmental adaptability, it has become the preferred new energy charging solution for scenarios such as private homes and public parking lots. The device is equipped with a 1.3-inch OLED display screen and four-color LED status indicator lights, which can display real-time and clear AC220V ± 20% wide input voltage, 32A rated current, and full charging status. The operating status is intuitive, visual, convenient, and controllable. The whole machine integrates twelve layers of comprehensive safety protection mechanisms, covering multiple protection functions such as overvoltage/undervoltage, overload, short circuit, 30mA high-precision leakage, 6kV lightning surge, 85 ℃ high temperature automatic power-off, etc. It has passed authoritative international standards certification such as CE and UL, with complete safety qualifications and zero hidden dangers in charging operation. The body adopts a lightweight and compact structural design, supporting two installation methods: wall mounted and column mounted, with flexible deployment and no occupation of space; The whole machine has reached the IP54 dustproof and waterproof protection level, and can operate continuously in a wide temperature environment of -30 ℃ to 50 ℃, without fear of outdoor complex climate interference. The device is equipped with intelligent attachment detection function, which can recognize the plug connection status in real time, ensure stable charging connection, and achieve an overall charging efficiency of up to 95%. It is also perfectly compatible with mainstream new energy passenger vehicles such as Tesla and BYD, and is suitable for various scenarios such as household daily energy replenishment and commercial public charging. With the comprehensive advantages of safety, efficiency, durability, and easy installation, it provides stable and reliable AC charging services for global users.

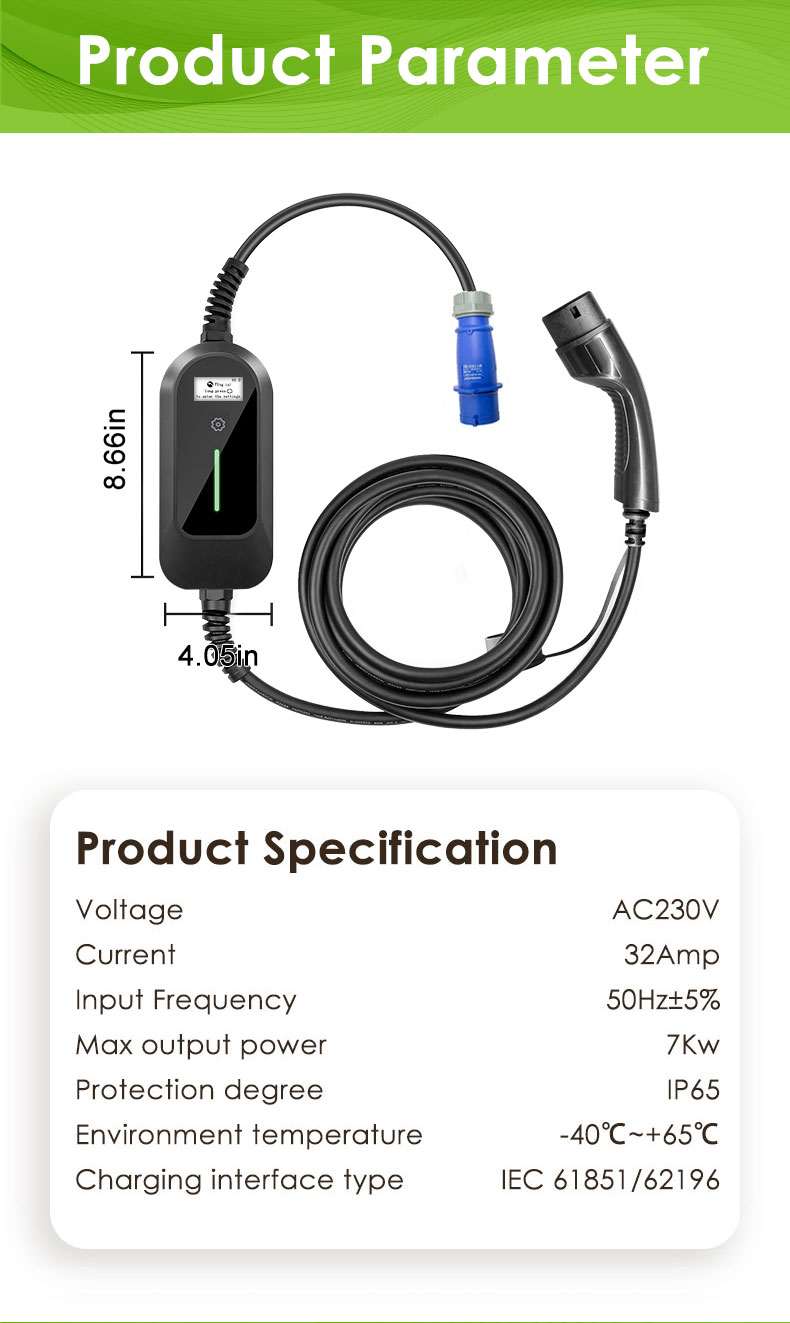

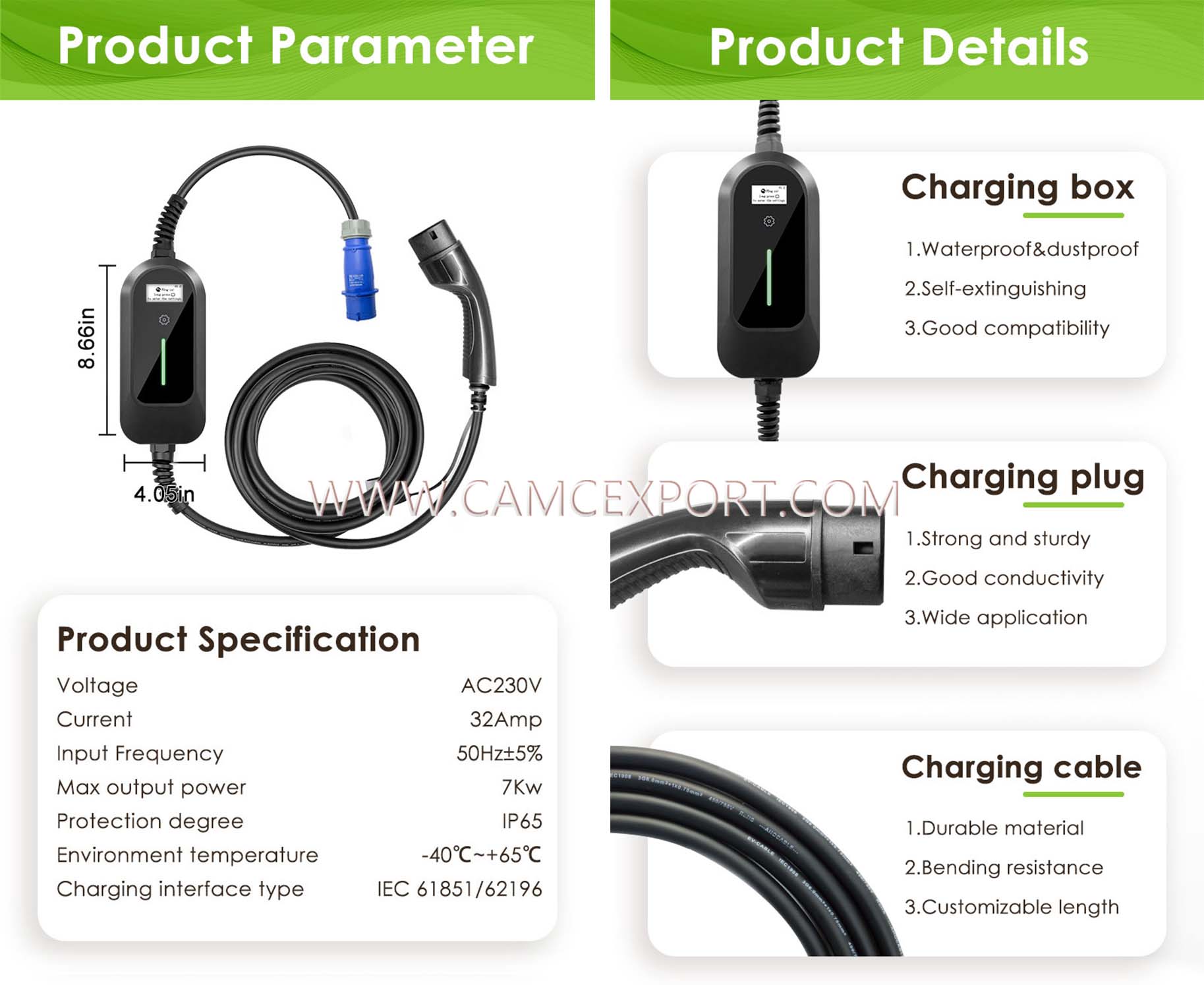

Dimension | 195(H) × 95(W) × 55(D)mm |

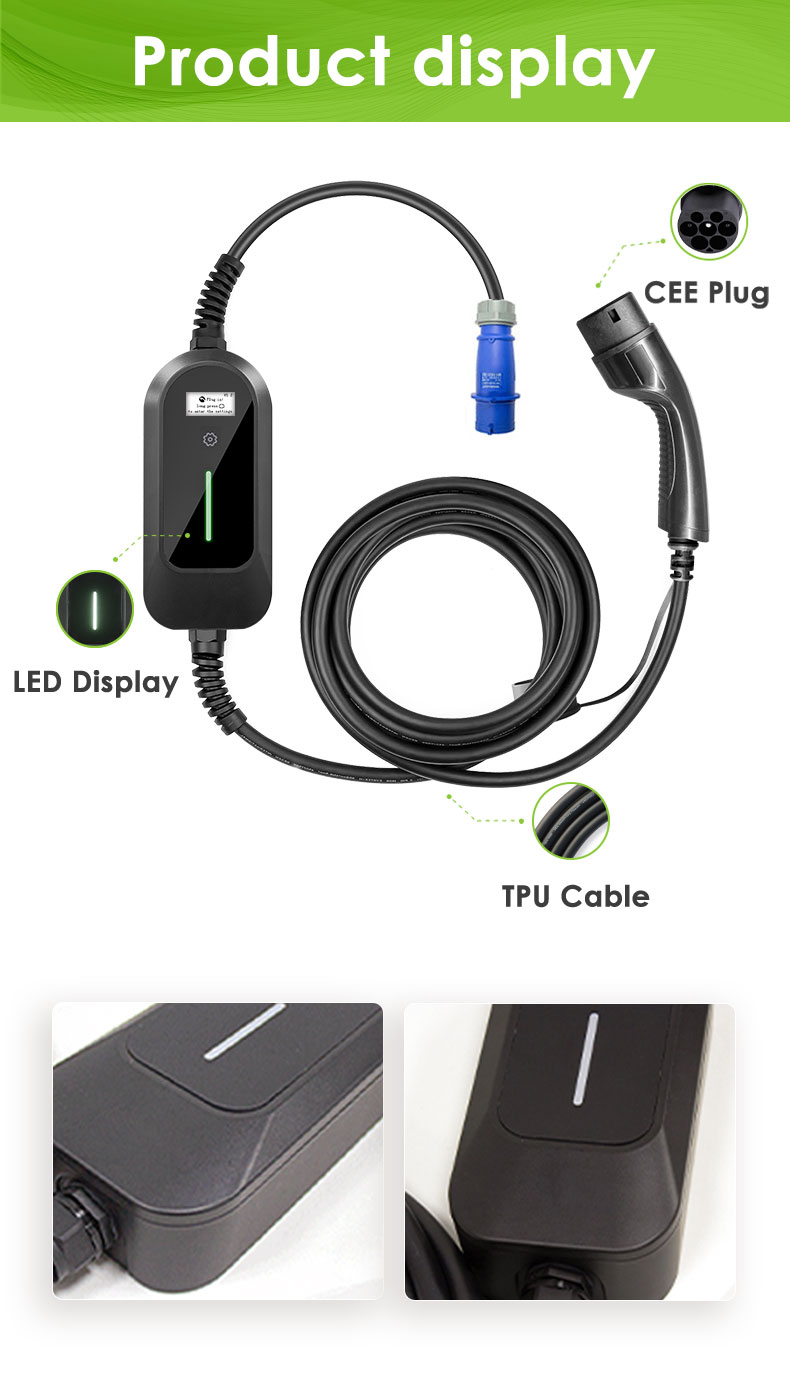

User Interface | 1.3 inch OLED Display with 4*LED Indicator light |
Cable length | 5m standard, 10m or other size customizable |
Weight | 2.4kg (Including charging gun) |
Input voltage | 220V |
Frequency | 45-65Hz |
Power rating | 7KW |
Measurement accuracy | Grade 1.0 on-board |
Output voltage | AC220V±20% |
Output current | 32A |
Standby power | ≤1W |
Power supply interface | Industriall waterproof plug |
Charging interface | IEC 61851 |
Design standard | SAE J1772、IEC 20234、GB/T 20234.1、GB/T 20234.2GB/T 18487.1、NB/T 42077 |
Protection | Overvoltage protection,undervoltage protection,overload protection, short circuit protection, grounding protection, type Aleakage protection,llightning/surge protection, reverse connection protection,adhesion detection, over temperature protection |
EMC Level | EMS automotive electronics standards,EMl Class B limit |
Working temperature | -40-+65℃ |
Working Humidity | 5%-95% no condensation |
Working altitude | ≤4000m |
Flame retardant properties | UL94-V0 |
IP grade | ≥IP65 |
Cooling mode | Natural cooling |
Applicable | Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
Special protection | Anti- Uv design, anti-vehicle rolling design |
MTBF | ≥100000H |
Plug temperature control | Standard |
1. Twelve layers of safety protection, internationally certified compliance: integrated with overvoltage, undervoltage, overload, short circuit, 30mA leakage, 6kV lightning protection, 85 ℃ over temperature power-off and other twelve layers of safety protection, certified by CE/UL international authority, fully safeguarding charging safety and ensuring global market compliance without worries.
2. Intelligent visual charging, intuitive and convenient operation: equipped with a 1.3-inch OLED screen and four-color LED indicator lights, real-time and accurate display of voltage, current and charging status, equipment operation status is clear at a glance, and daily use is convenient and worry free.
3. Efficient and stable charging, compatible with all models: supports a rated current output of 32A, equipped with intelligent attachment detection technology, stable connection without tripping, charging efficiency up to 95%, fully compatible with mainstream new energy electric vehicles such as Tesla and BYD.
4. Wide temperature and weather resistance operation, suitable for outdoor and indoor use: IP54 high-grade dust and waterproof protection, can work stably in extreme temperature difference environments from -30 ℃ to 50 ℃, is not afraid of wind, rain, high and low temperature weather, and is suitable for long-term operation in multiple indoor and outdoor scenarios.

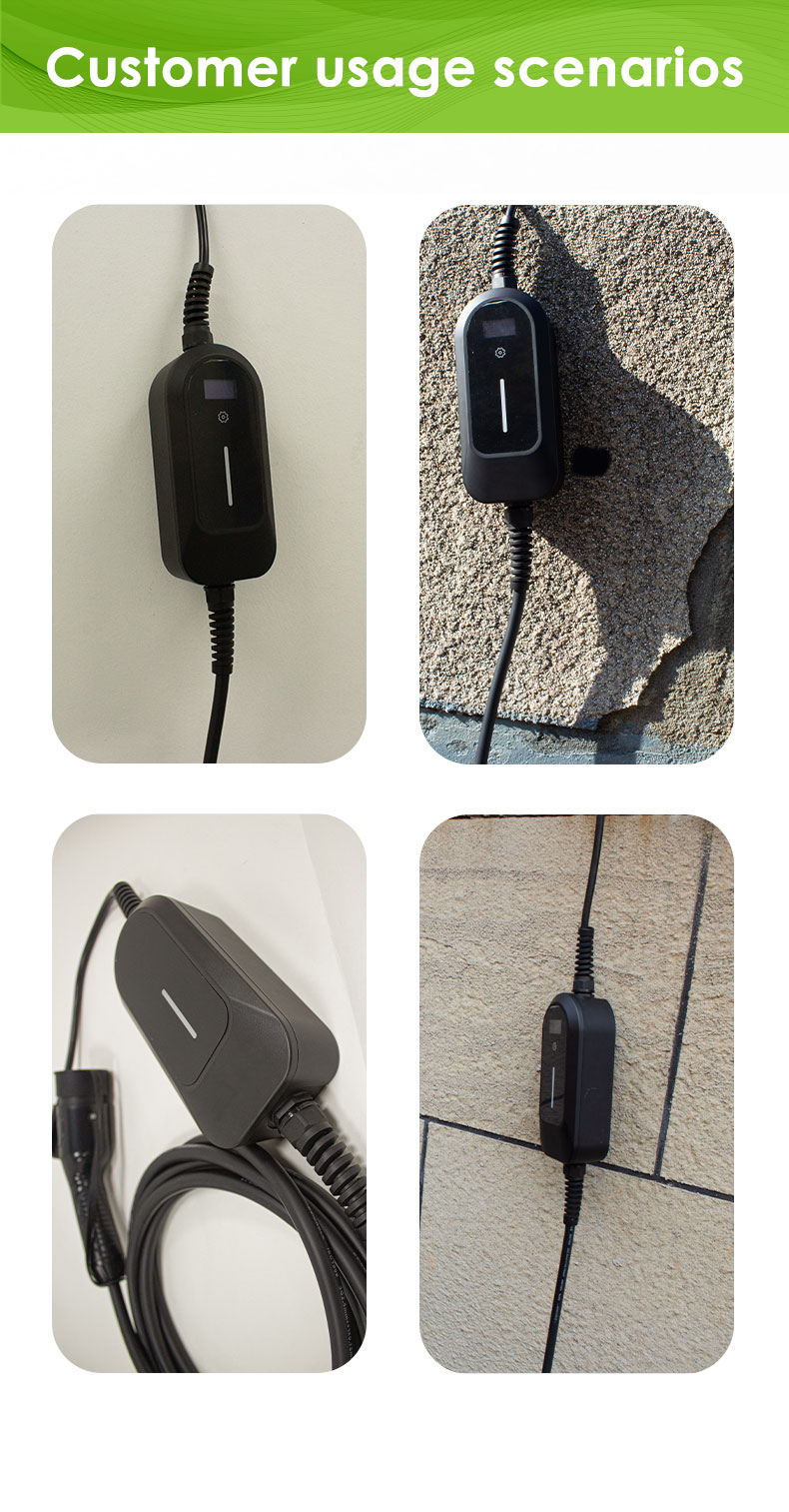

5. Compact and flexible installation, widely adaptable to various scenarios: With a small and compact body design, it supports both wall mounted and column mounted installation methods, making installation convenient and occupying small space. It is perfectly suitable for household and commercial charging scenarios such as family garages, private piles in residential areas, and public parking lots.
1. Overseas family users: "This CAMC 7kW AC charger has an excellent user experience. The OLED screen allows clear viewing of charging data, and the four-color indicator light status is intuitive, making it easy to get started. The twelve fold safety protection makes home charging very reassuring, with good waterproof and dustproof effects. Outdoor installation also does not have to worry about weather effects. Charging is stable, efficient, and perfectly compatible with my new energy vehicle, making it a high-quality choice for home charging piles. "
2. Overseas commercial parking lot operators: "Our public parking lots require safe, stable, and compatible charging equipment, and the CAMC AC 7kW charger fully meets the needs. The equipment has passed CE/UL international certification, with complete safety configurations and can be adapted to various mainstream new energy vehicle models. Its 95% high charging efficiency enhances the user experience. IP54 protection is suitable for long-term outdoor operation, with flexible installation methods, extremely low failure rates, and low operation and maintenance costs, making it very suitable for large-scale deployment in commercial scenarios. "
CAMC stands as a specialized player in the automotive and transportation industry, with its core focus on delivering a versatile portfolio of commercial vehicles. Spanning multiple drive configurations including 4×2, 6×4 and 8×4 models, our product range is tailored to address the varied operational requirements of clients worldwide.
At CAMC, we hold ourselves to the highest standards of product quality and service delivery. Our central objective is to ensure that every client gains optimal value from their procurement investment.
We take immense pride in being the sole enterprise across China capable of independently manufacturing the entire spectrum of truck components. This end-to-end production capability enables us to provide market-leading vehicles renowned for reliability and operational efficiency. Furthermore, we were the trailblazer in advocating for electric trucks in China, backed by strong government support and authoritative certifications that drive our continuous advancement in the new energy vehicle domain.
With quality and innovation as our guiding principles, CAMC is primed for steady growth and lasting achievements in the competitive global vehicles and transportation sector.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q:What's new about the new product?
A:Quality compliance, to solve the problem of licensing. Dimensions compliance, announcement photo compliance.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service,some countries use the third party service.
Q:Why choose you?
A:Our brand has decades of reputation, our factory has the country's top technology, our workers are serious and responsible, to ensure the high quality of every product and we provide you with quality after-sales service.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What's the payment terms?
A:By T/T or L/C at sight.
